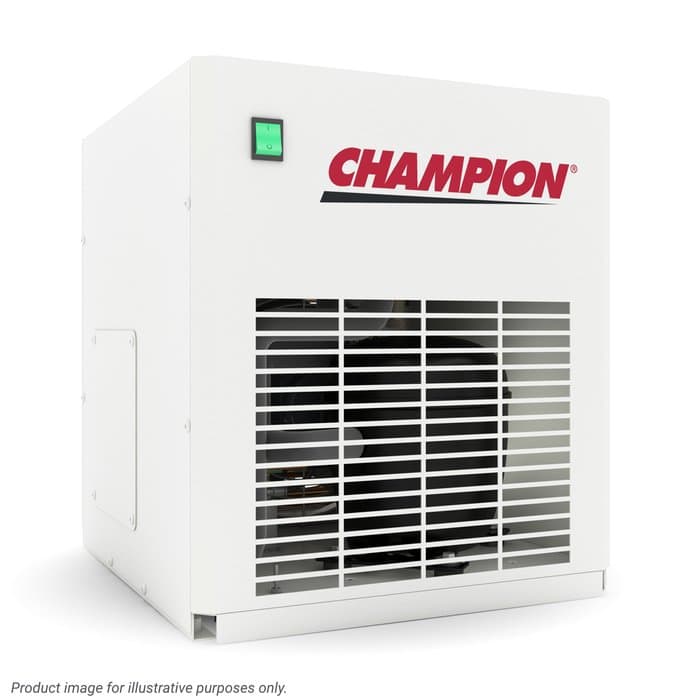

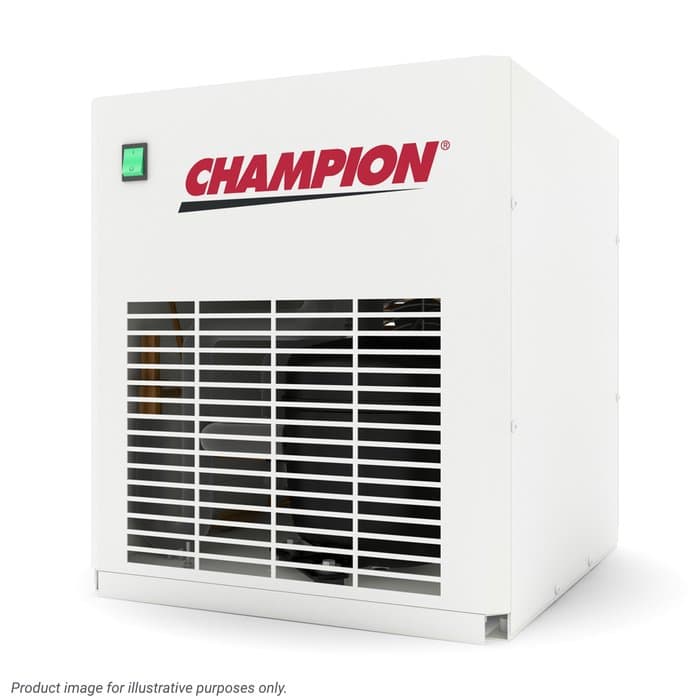

CNV Series Non-Cycling Refrigerated Dryer: 50 SCFM
SKU: CNV50A1
Model: CNV50A1
SKU: CNV50A1
Champion Pneumatic's CNV Series of non-cycling refrigerated air dryers delivers dependable moisture removal and consistent compressed air quality in a compact, cost-effective package. Featuring an energy-efficient design, R513A refrigerant, and a high-performance aluminum brazed plate heat exchanger, the CNV Series provides reliable operation while helping reduce power consumption. A space-saving footprint, automatic condensate drain, and durable steel enclosure make installation and maintenance simple across a wide range of facilities. Available in multiple flow capacities from 32 to 150 SCFM, this dryer offers dependable performance and easy ownership.
Product Specifications
Rated Flow (scfm): 50
Max Pressure (psi): 203
Maximum Inlet Tempearature (F): 120
Dimensions (inches) (LxWxH): 20.2x17.9x21
Weight (lbs): 69
Rated Flow (scfm): 50
Max Pressure (psi): 203
Maximum Inlet Tempearature (F): 120
Dimensions (inches) (LxWxH): 20.2x17.9x21
Weight (lbs): 69
In Stock
$1,726.83
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Reliable Moisture Removal – Delivers a consistent Class 6 pressure dew point to help protect downstream equipment and improve compressed air system performance.
- Compact, Easy-to-Install Design – Features a space-saving footprint, integrated filtration package, and automatic condensate drain for fast installation and simplified operation.
- Built for Industrial Reliability – Constructed with a durable powder-coated steel enclosure and environmentally responsible R513A refrigerant, providing long-lasting performance in demanding applications.
