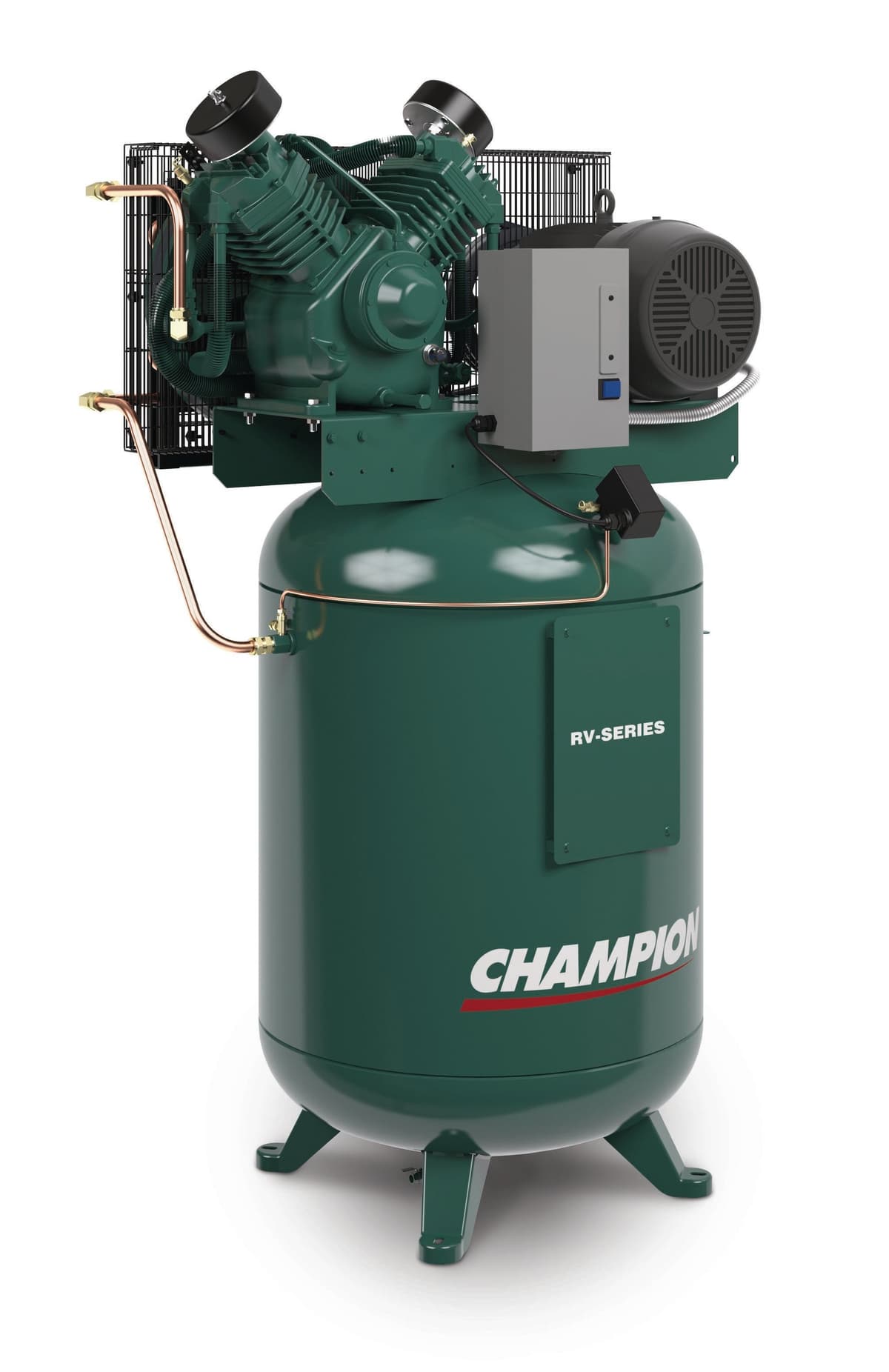

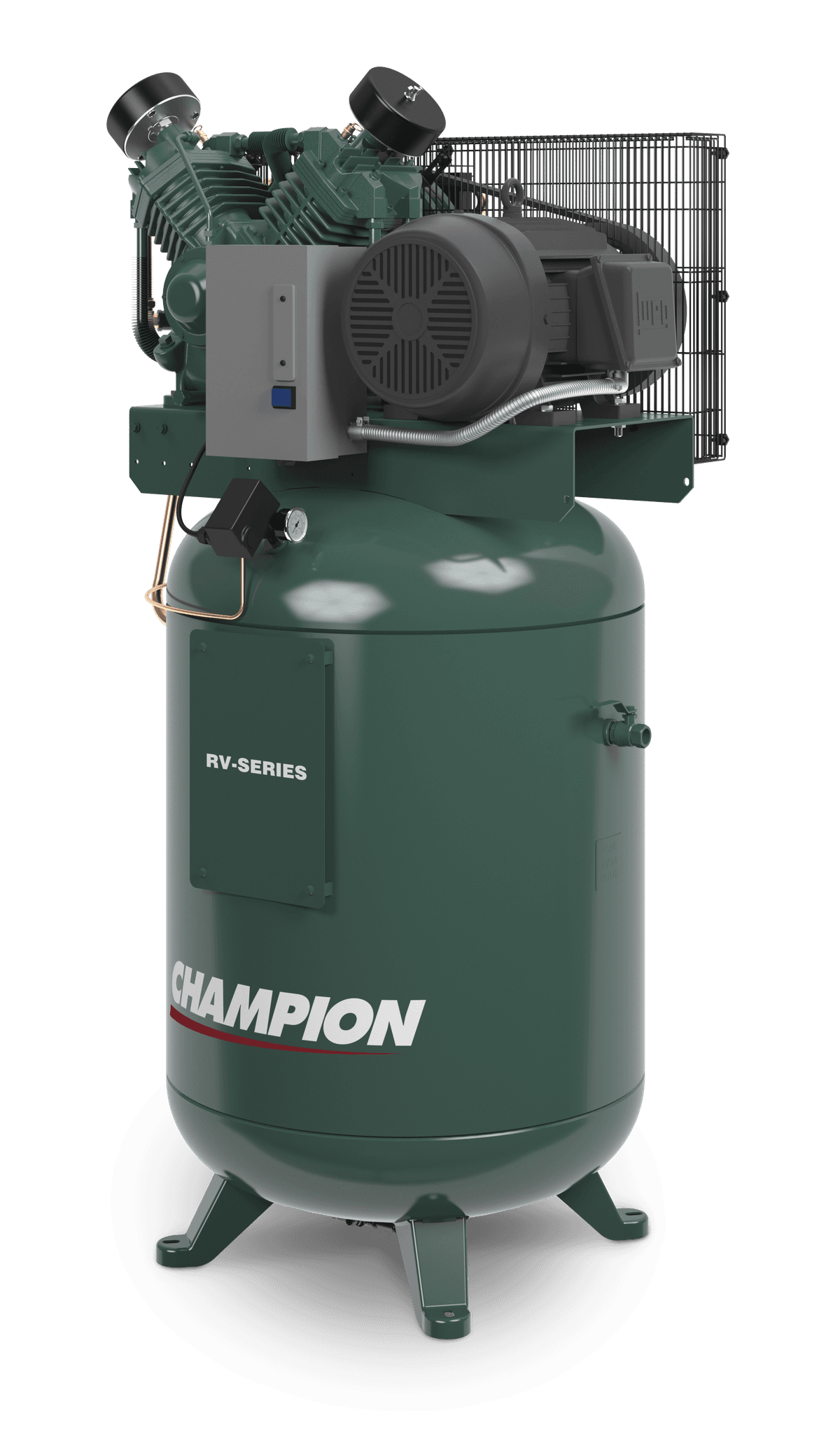

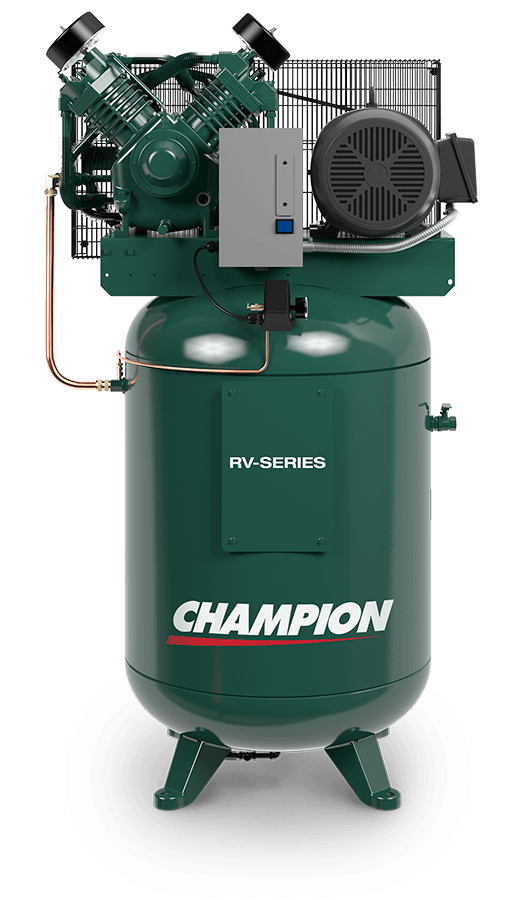

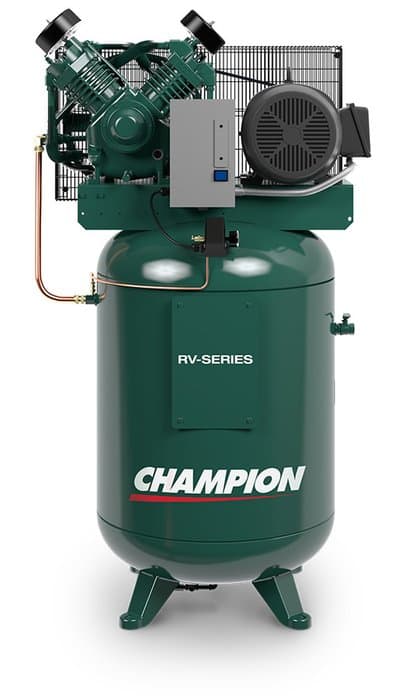

RV-Series 15HP Reciprocating Compressor - Vertical Tank - 208V/3 - 1800 RPM
SKU: RV2-15B-S18-EC
120 Gallon California Coded Vertical Tank with Vibration Isolators
SKU: RV2-15B-S18-EC
The Champion RV-Series Two Stage, Splash Lubricated Reciprocating Compressor is engineered to deliver industrial-rated dependability at an affordable price. The RV line offers maximum installation versatility with design features that ensure peak performance throughout the life of the compressor.
Verify your building’s voltage before purchasing a compressor to avoid unsafe operation, tripped breakers, or motor damage, and consult a certified electrician if you’re unsure.
Product Specifications
Power (HP): 15
Rated Flow (cfm): 46.8
Max Pressure (psi): 175
Tank Size: 120
Tank Style: Vertical
Voltage: 208
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 42.1x34.4x75.2
Compressor Weight (lbs): 1017
Power (HP): 15
Rated Flow (cfm): 46.8
Max Pressure (psi): 175
Tank Size: 120
Tank Style: Vertical
Voltage: 208
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 42.1x34.4x75.2
Compressor Weight (lbs): 1017
Expected to ship within 30 business days.
$7,729.33
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor
- Cast iron cylinders and heads offer industrial-rated, rugged dependability
- Industrial grade intake filter and silencer
- Oil level site glass for easy monitoring

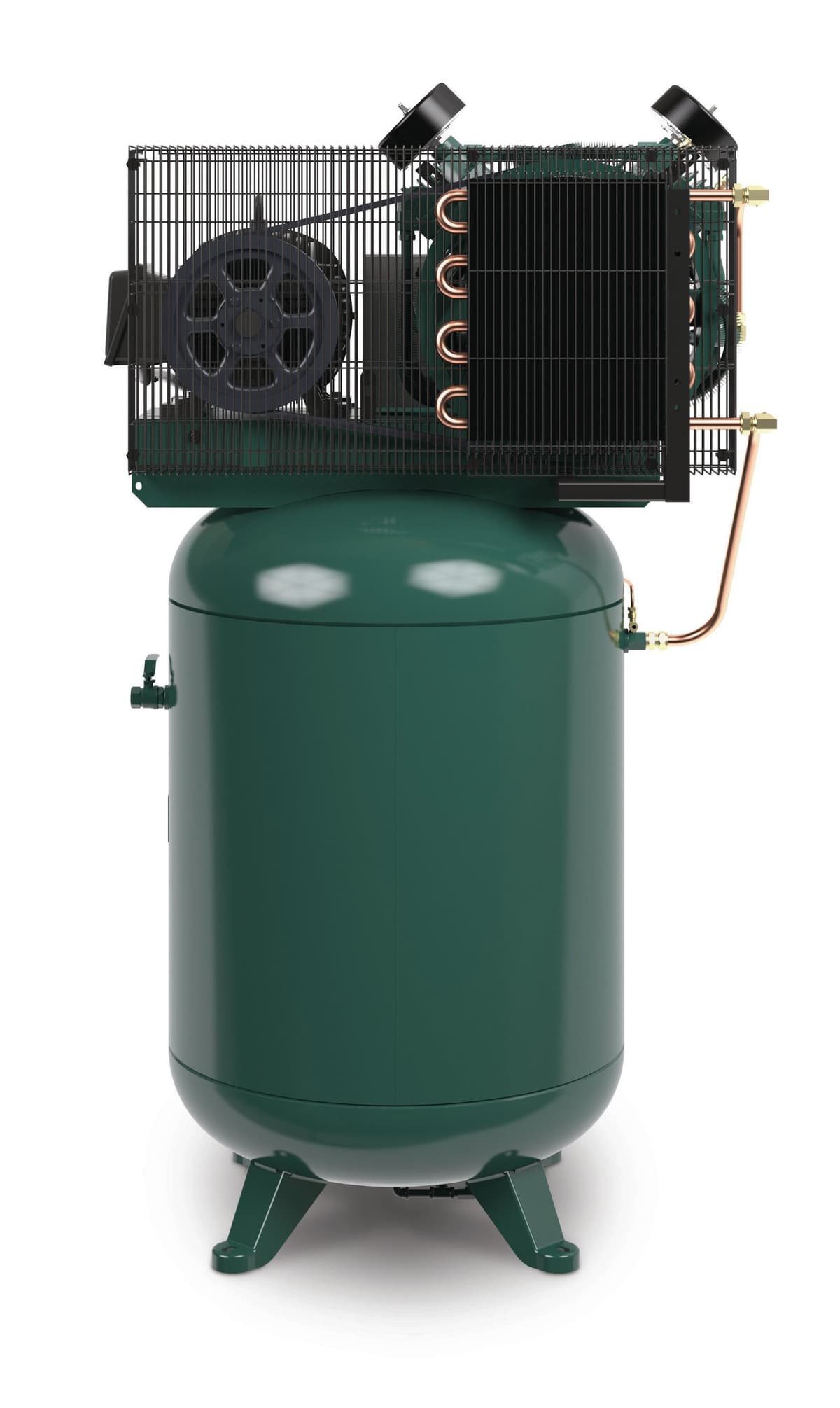

- Deep finned intercooler for cool operation
- ASME air receiver
- NEMA-Rated electric motors
- Model Number VRV15F-12
