Pressure Switch

SKU: VP1062713

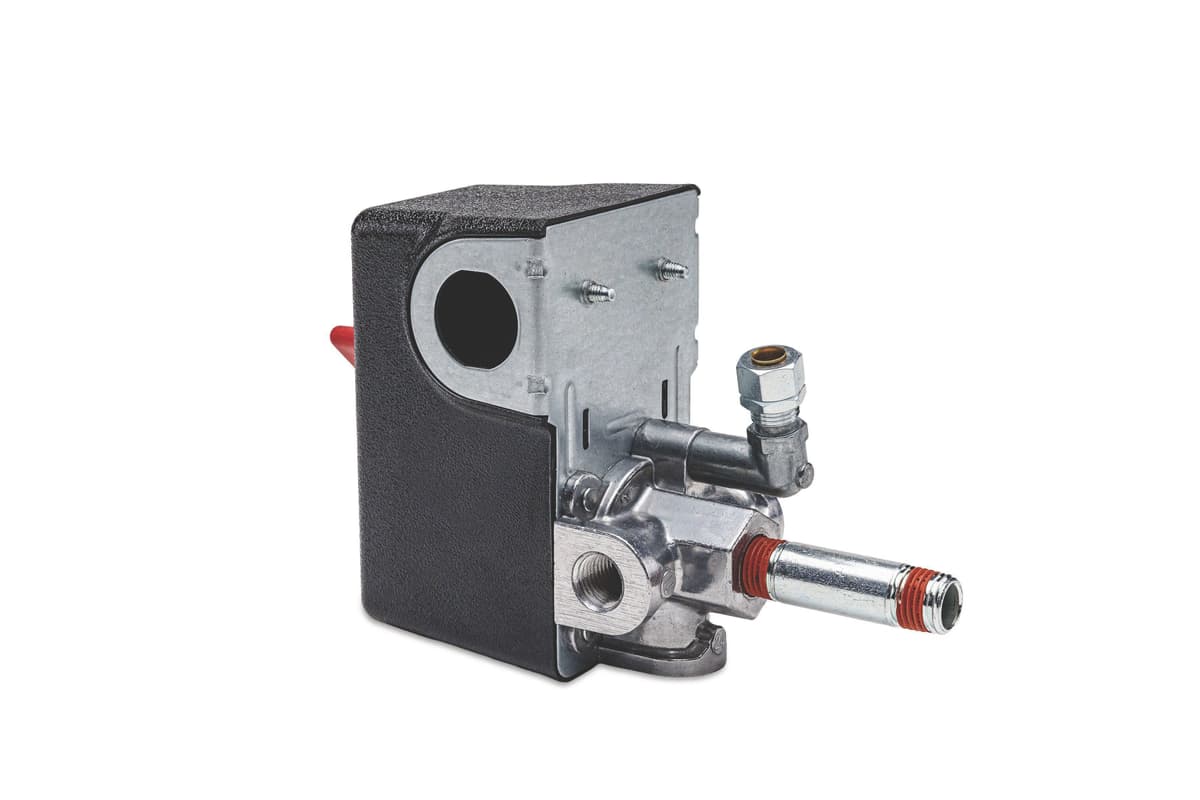

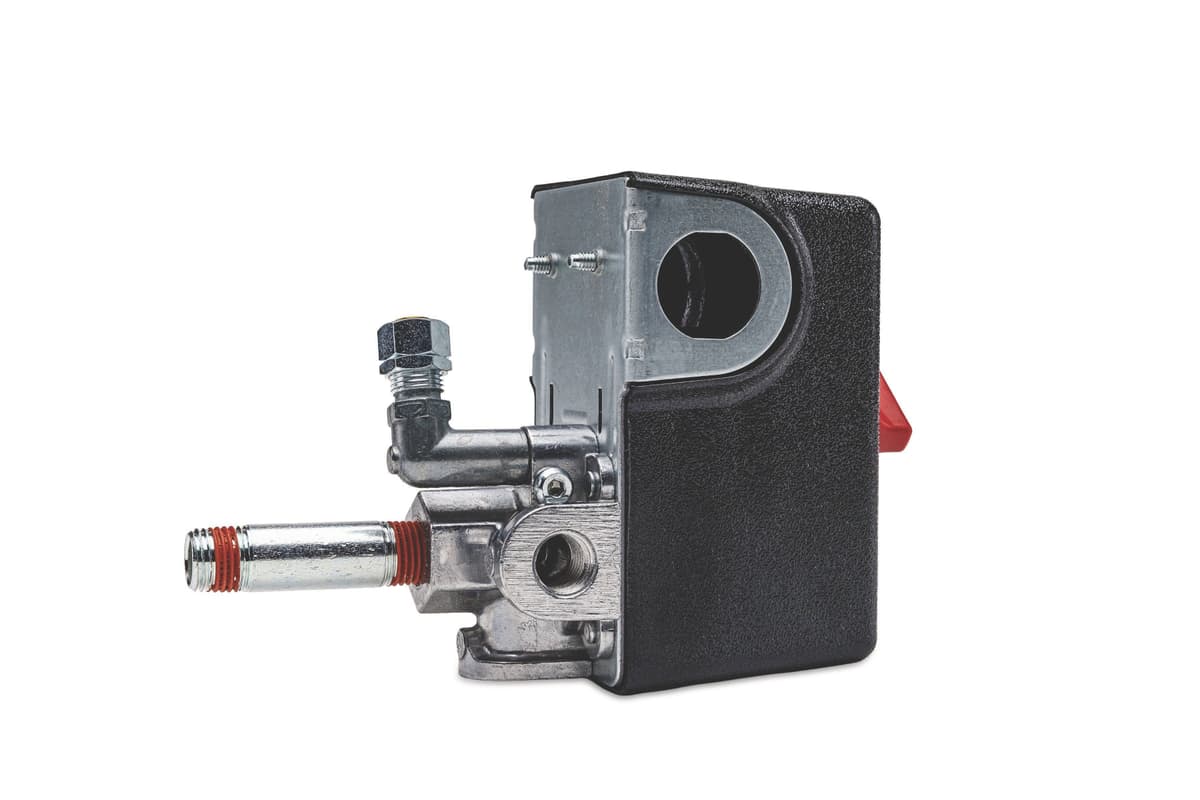

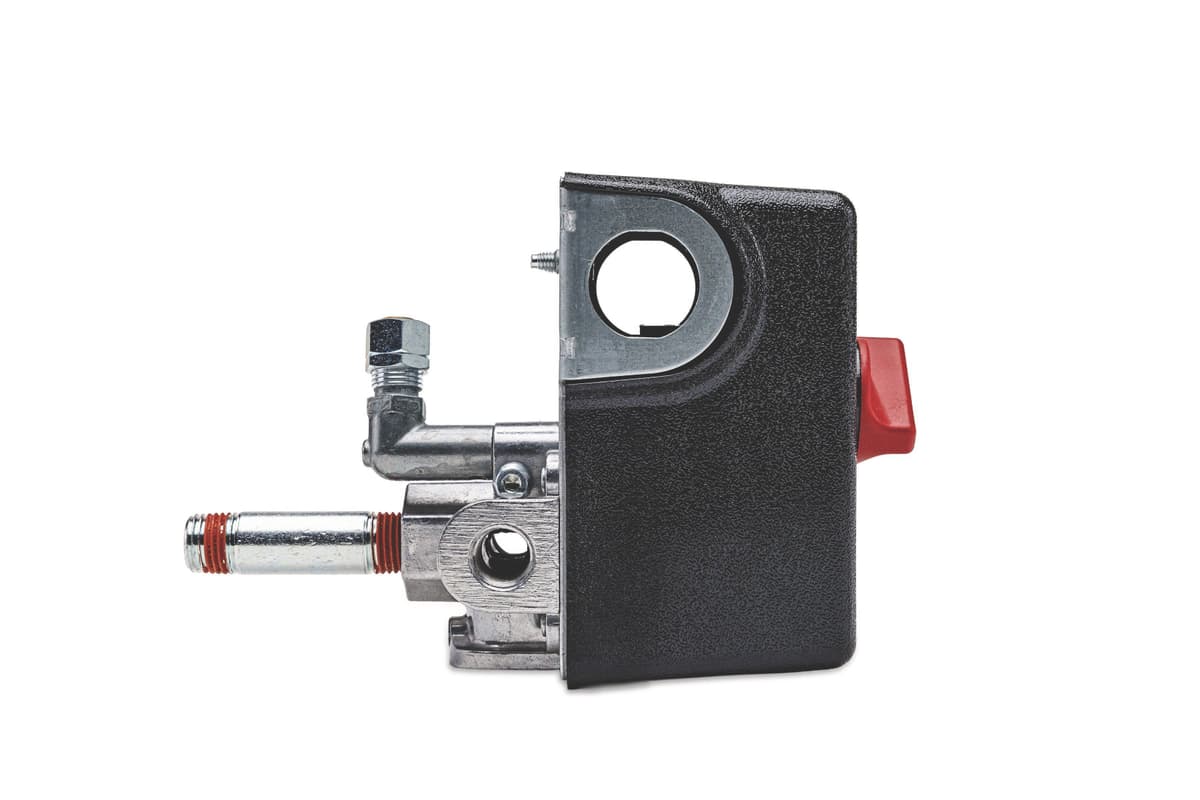

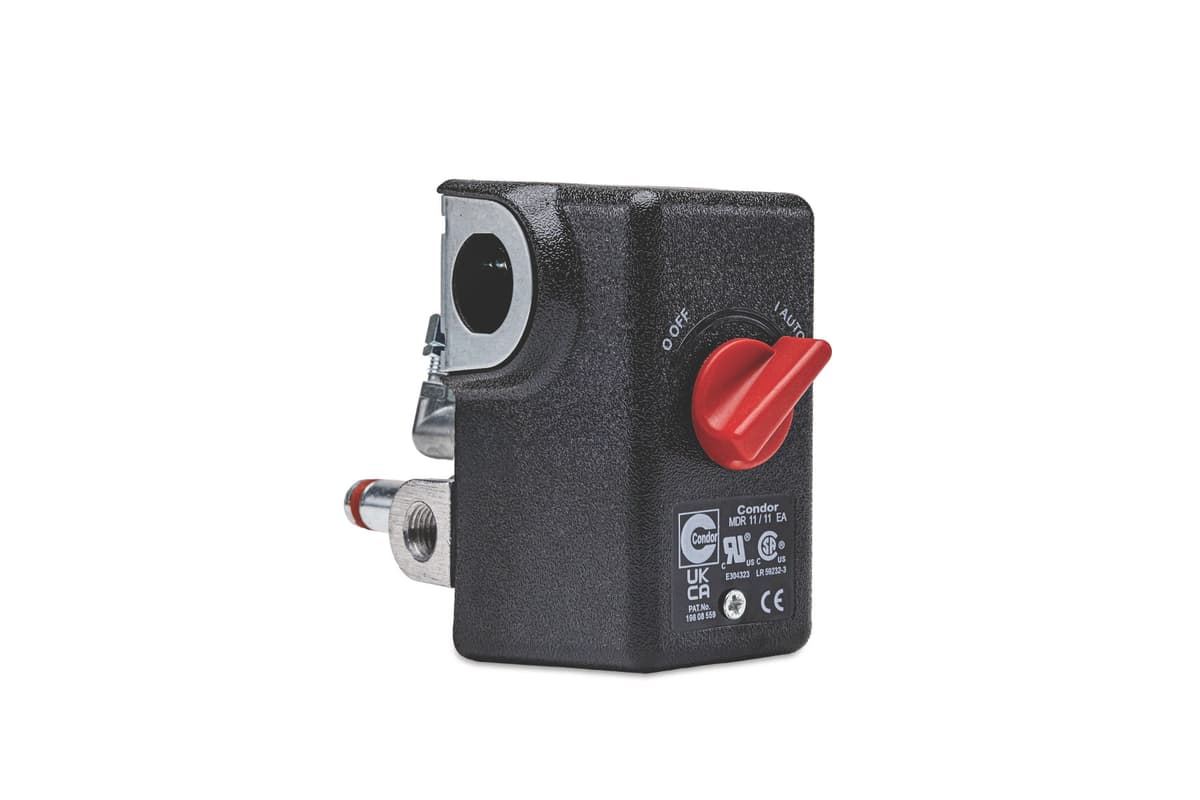

Champion Air Compressor four port pressure switch (140-175 PSI) with on/off selector for RV-Series compressors
Pressure Switch thumbnail 1
Pressure Switch thumbnail 2
Pressure Switch thumbnail 3
Pressure Switch thumbnail 4

Four port pressure switch

SKU: VP1062713

Champion Air Compressor 140-175 PSI four port pressure switch with on/off selector switch used on RV-Series Compressors
In Stock

$119.71

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.
  • NEMA 1 enclosure with (3) 1/4" NPT female openings and (1) 1/4" NPT x 2" long steel nipple
  • On/Off selector switch
  • Min cut in pressure of 40 PSI/Max cut out pressure of 175 PSI with Adjustable differential pressure range of 30-65 PSI
  • UL Listed and CSA approved electrical ratings, 26 Full Load Amps
