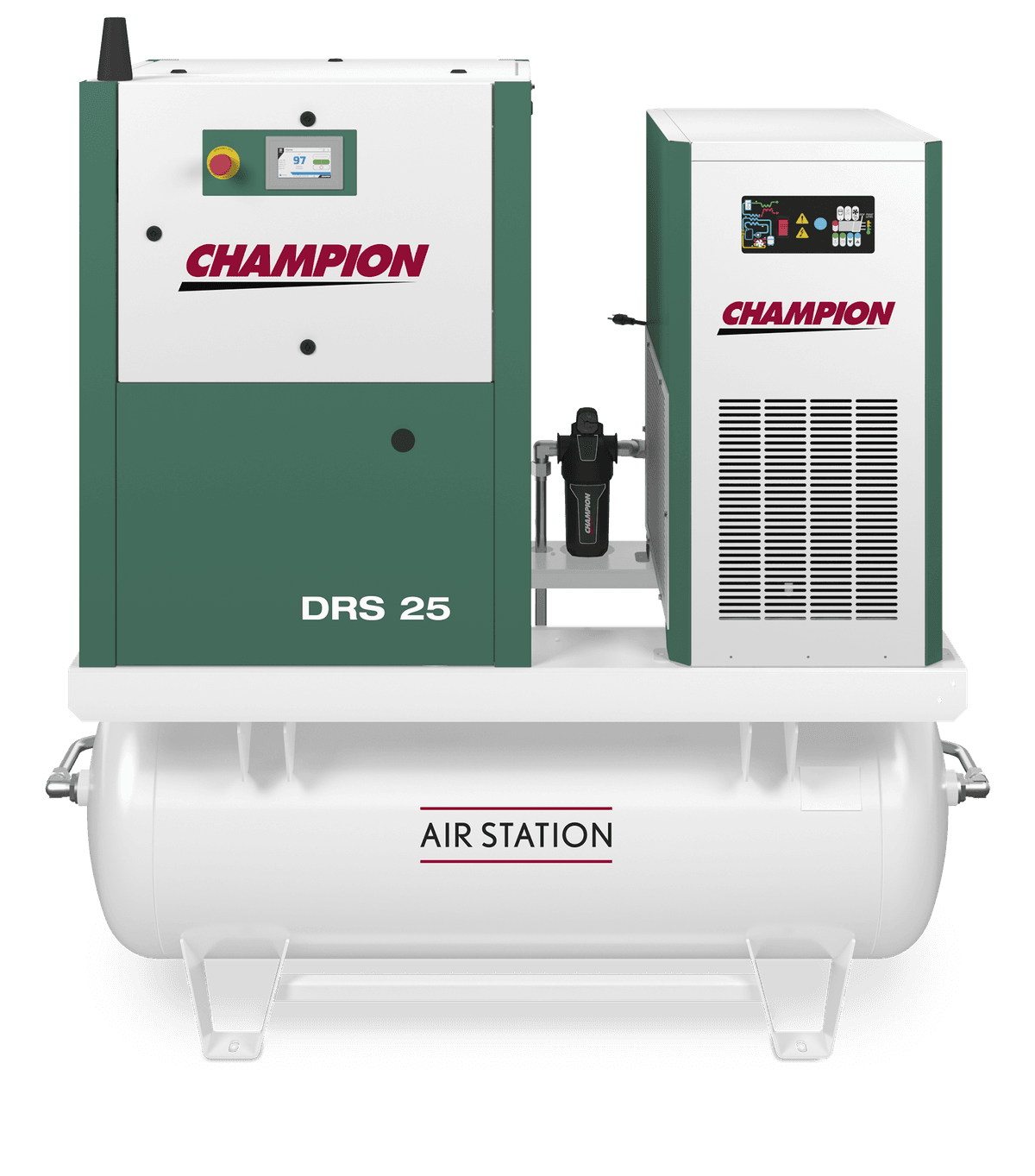

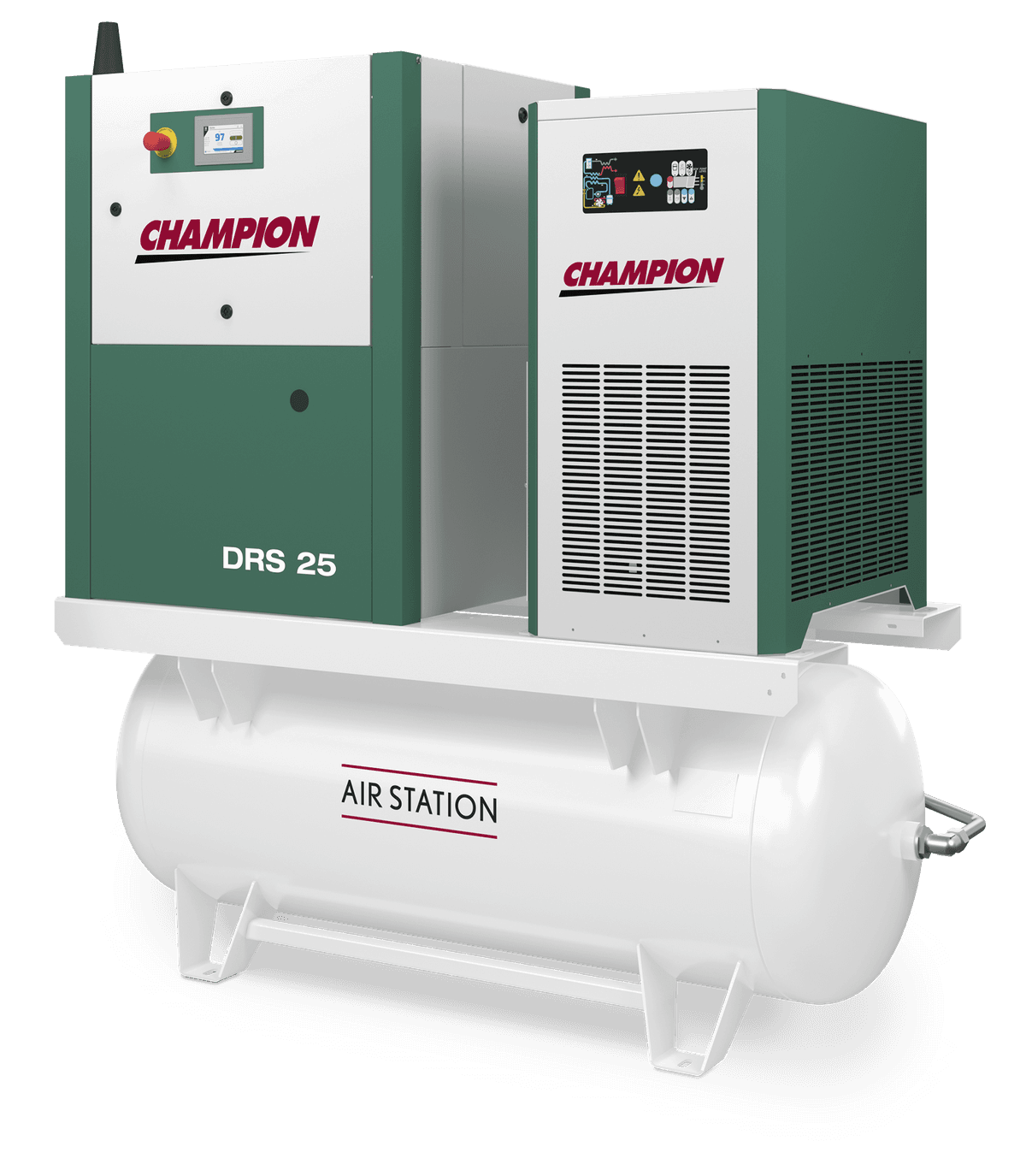

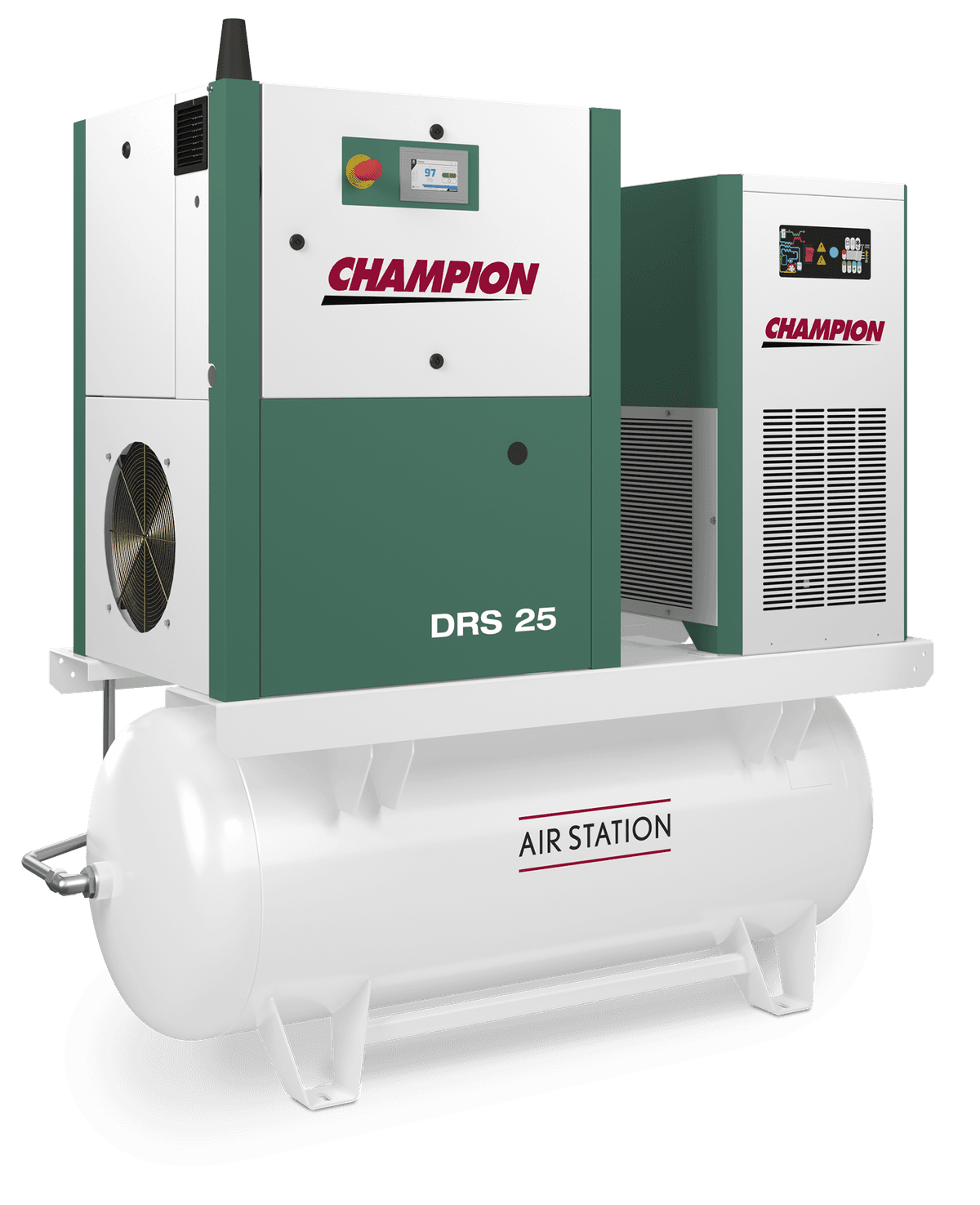

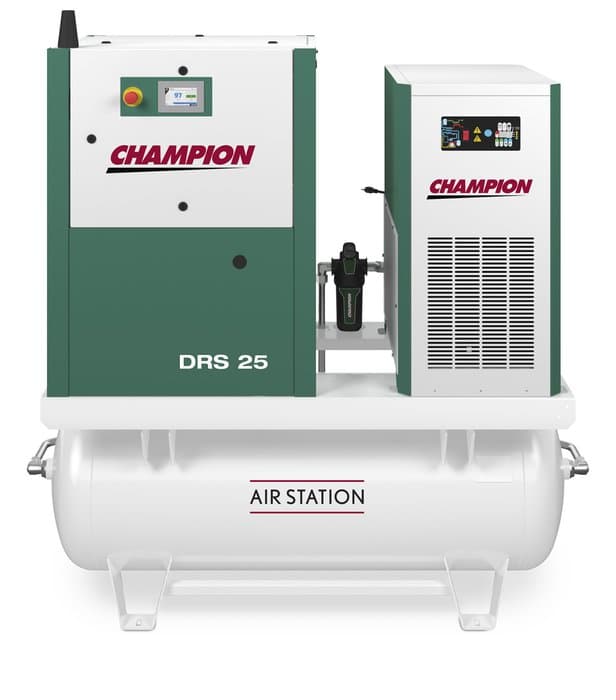

DRS Series 25 HP Variable Speed Rotary Screw Compressor - Air Station
SKU: DRS20-30B03




Rotary Screw Air Compressors (25 HP)
SKU: DRS20-30B03
The Champion DRS Series offers variable speed compressors that are designed with energy efficient inverter drives and motor combinations. These oil-lubricated, rotary screw compressors are ideal for environments where air demand fluctuates and energy savings are desired. This is a complete plug-and-play solution for your application featuring a rotary screw compressor, dry tank air receiver, refrigerated air dryer & 1 micron pre-filter, two separate electrical connections (compressor and dryer), pressure gauge, tank drain and controller.
Verify your building’s voltage before purchasing a compressor to avoid unsafe operation, tripped breakers, or motor damage, and consult a certified electrician if you’re unsure.
Product Specifications
Power (HP): 25
Rated Flow (cfm): 86.2
Max Pressure (psi): 152
Tank Size: 120
Tank Style: Horizontal
Voltage: 460
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 74.8x35x76.3
Compressor Weight (lbs): 1821
Power (HP): 25
Rated Flow (cfm): 86.2
Max Pressure (psi): 152
Tank Size: 120
Tank Style: Horizontal
Voltage: 460
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 74.8x35x76.3
Compressor Weight (lbs): 1821
Expected to ship within 30 business days.
$37,182.64
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Compact, plug-and-play compressed air solution with dryer and filter
- Up to 25% on energy savings thanks to variable speed drives.
- Innovative component integration results in compact, serviceable and quiet compressors
- Equipped with easy to use, intelligent control solutions
- Belt driven
