D Series 25 HP Fixed Speed Rotary Screw Compressor - Air Station
SKU: D20-30B12




Rotary Screw Air Compressors (25 HP)
SKU: D20-30B12

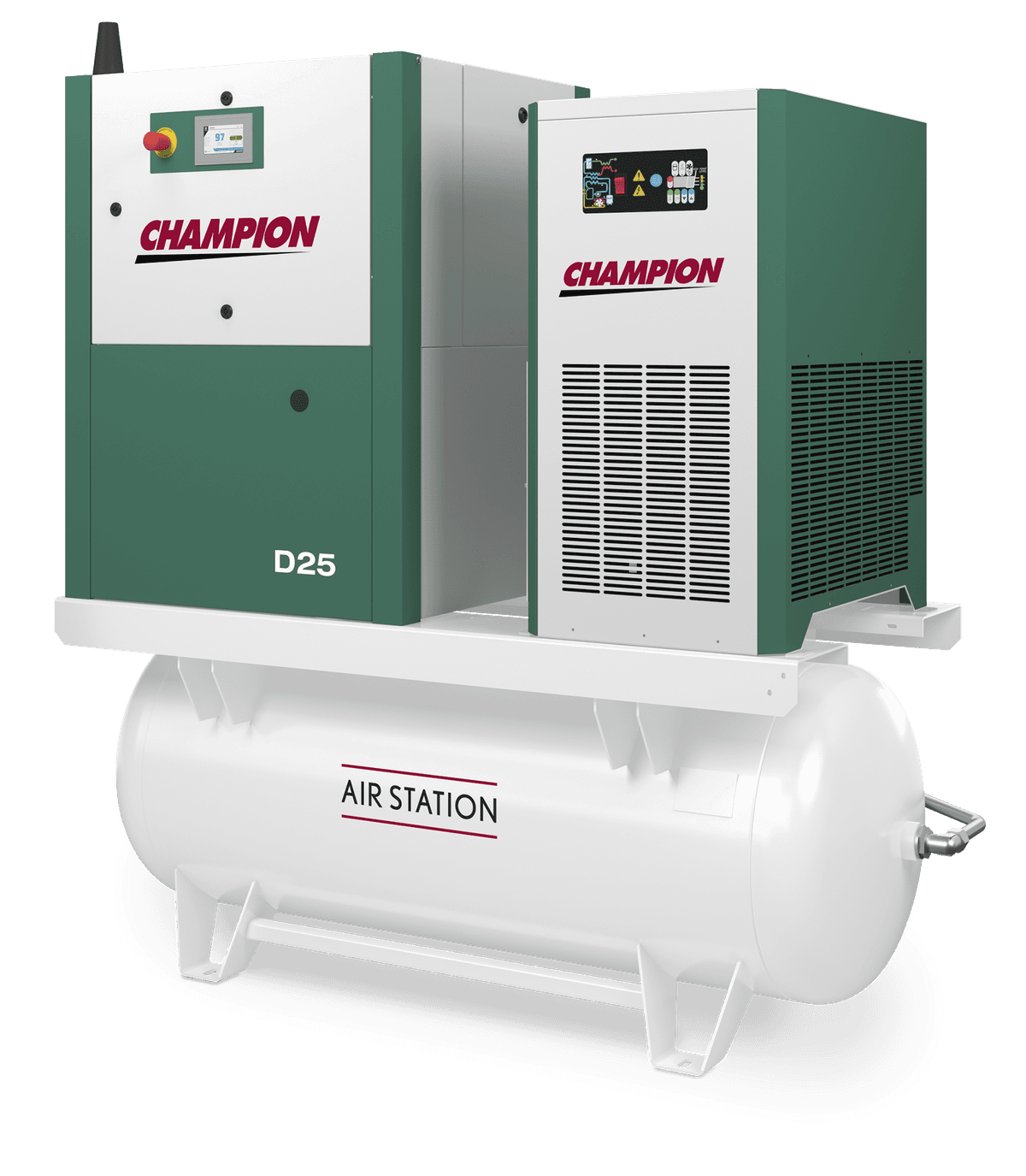

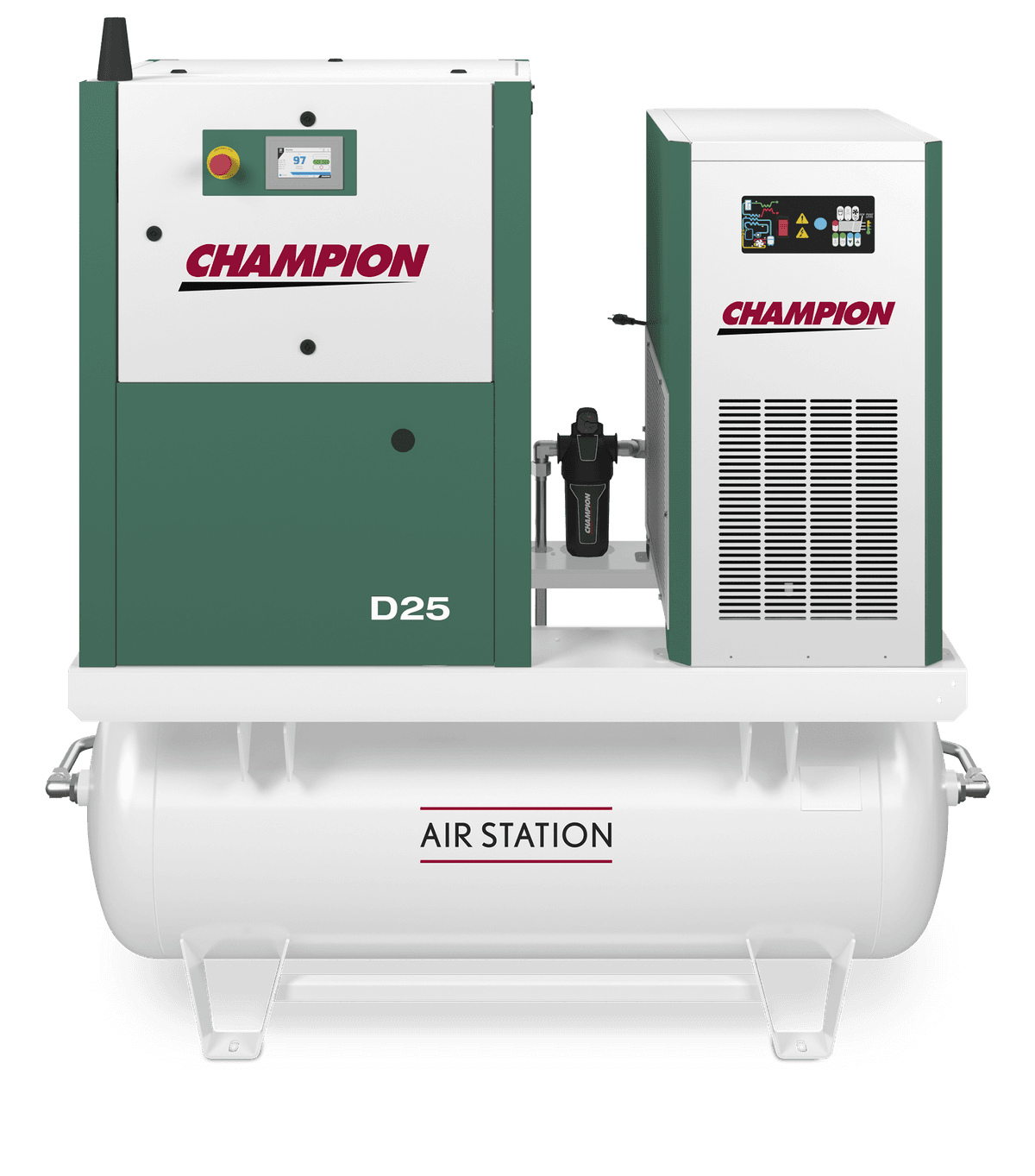

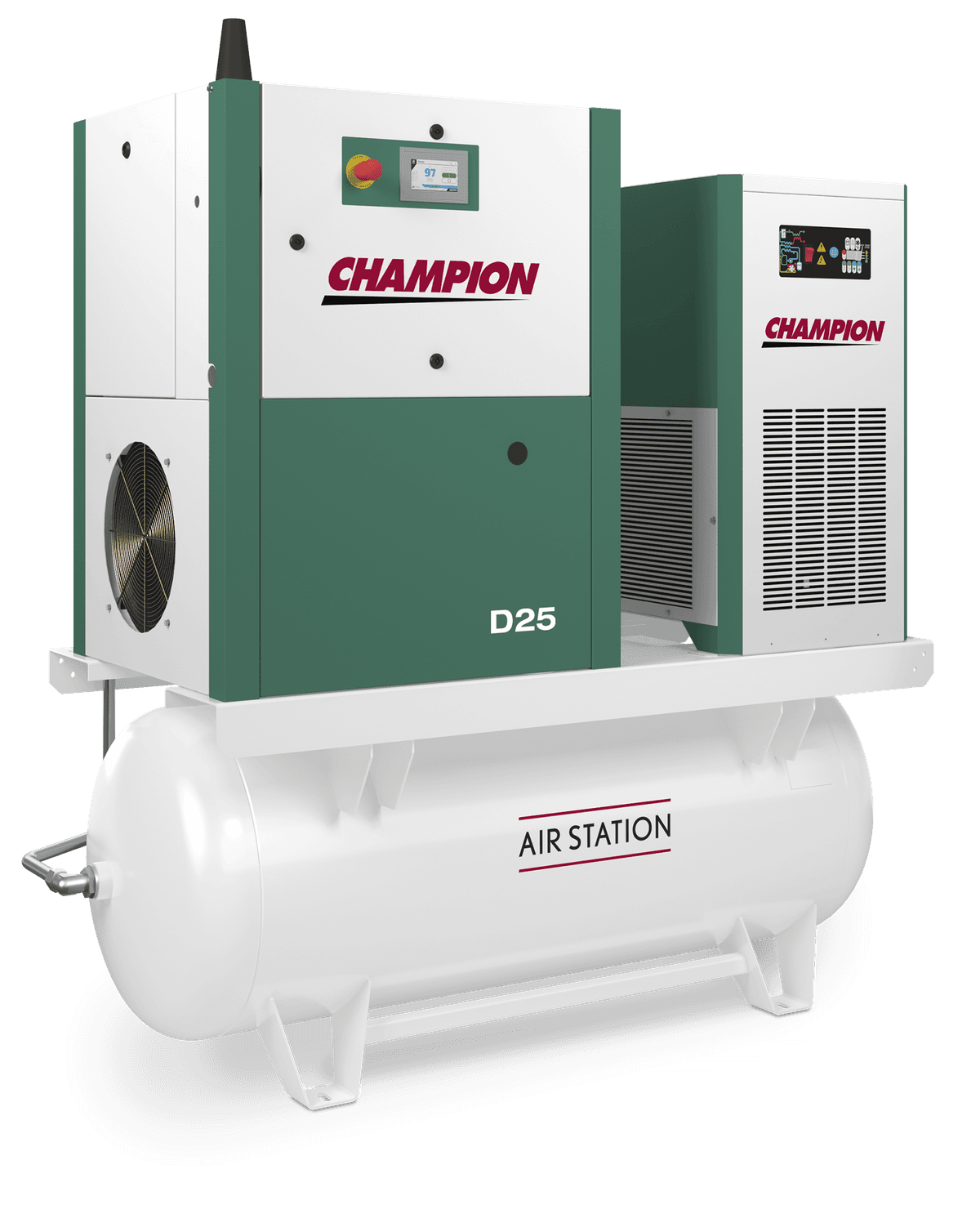

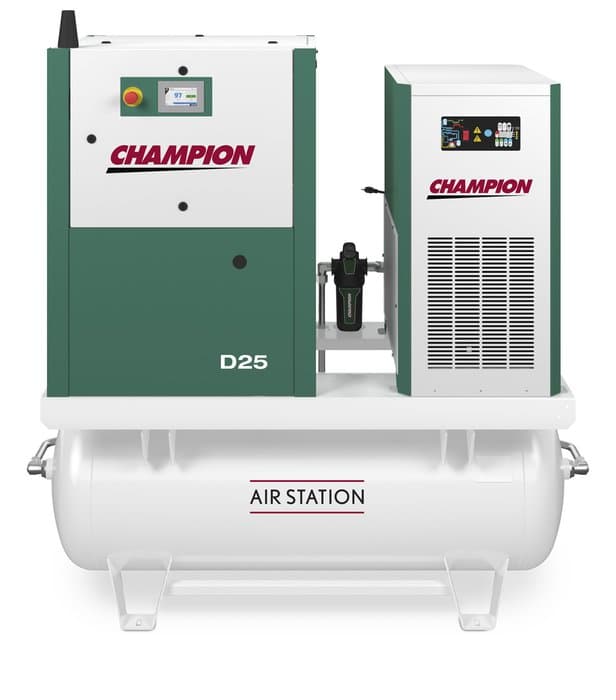

The Champion D Series offers a line of fixed speed, compact, heavy-duty rotary screw air compressors ideal for continuous use applications where constant compressed air demand is required. This is a complete plug-and-play solution for your application featuring a rotary screw compressor, dry tank air receiver, refrigerated air dryer & 1 micron pre-filter, two separate electrical connections (compressor and dryer), pressure gauge, tank drain and controller.
Verify your building’s voltage before purchasing a compressor to avoid unsafe operation, tripped breakers, or motor damage, and consult a certified electrician if you’re unsure.
Product Specifications
Power (HP): 25
Rated Flow (cfm): 76
Max Pressure (psi): 182
Tank Size: 120
Tank Style: Horizontal
Voltage: 460
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 74.8x35x76.3
Compressor Weight (lbs): 1701
Power (HP): 25
Rated Flow (cfm): 76
Max Pressure (psi): 182
Tank Size: 120
Tank Style: Horizontal
Voltage: 460
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 74.8x35x76.3
Compressor Weight (lbs): 1701
Expected to ship within 30 business days.
$24,366.32
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Compact, plug-and-play compressed air solution with dryer and filter
- Enclosed design ensures placement near the point-of-use without worrying about elevated noise levels
- Equipped with easy to use, intelligent control solutions
- Simplified, reduced-component, encapsulated airend design enhances reliability
- Belt driven
