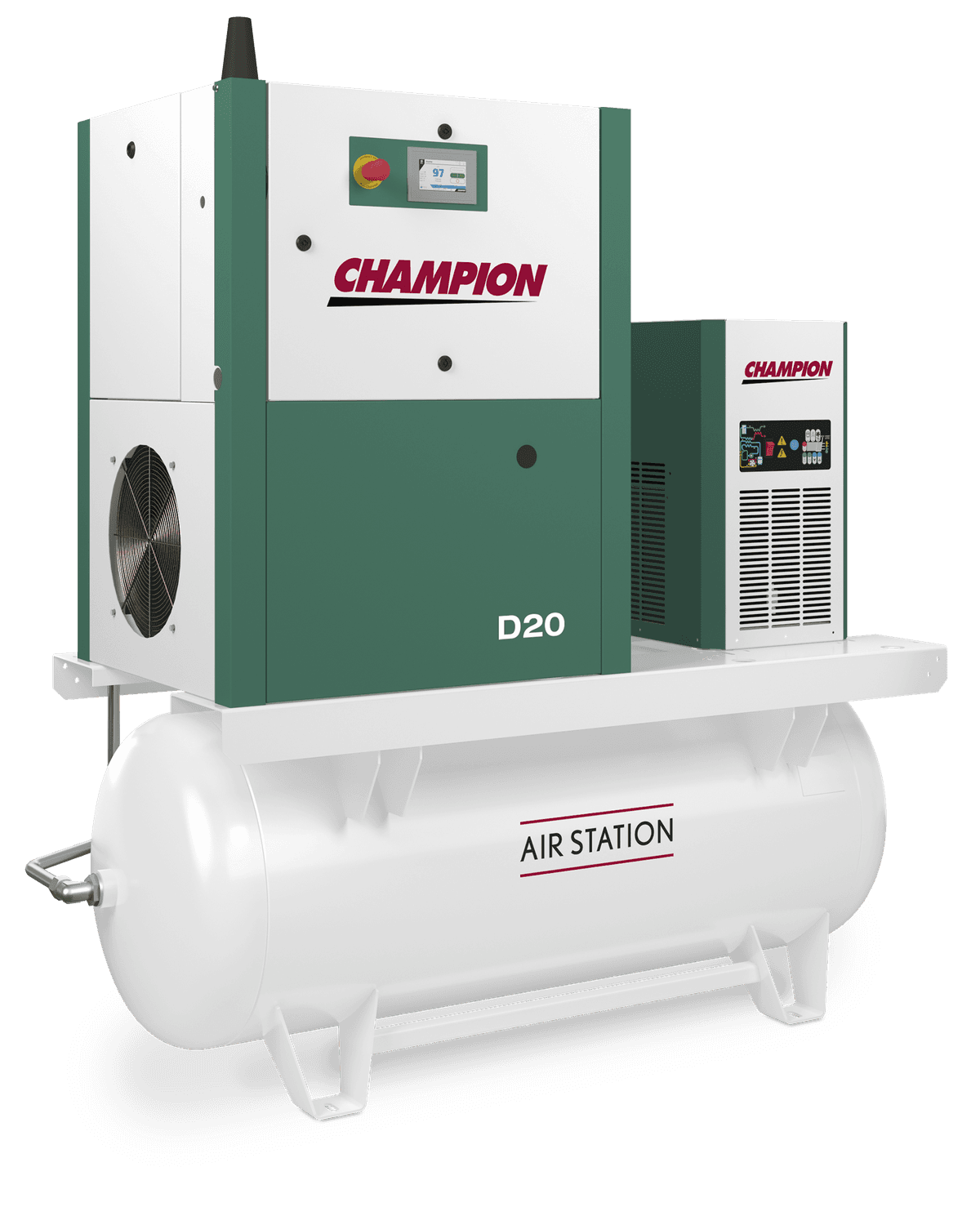

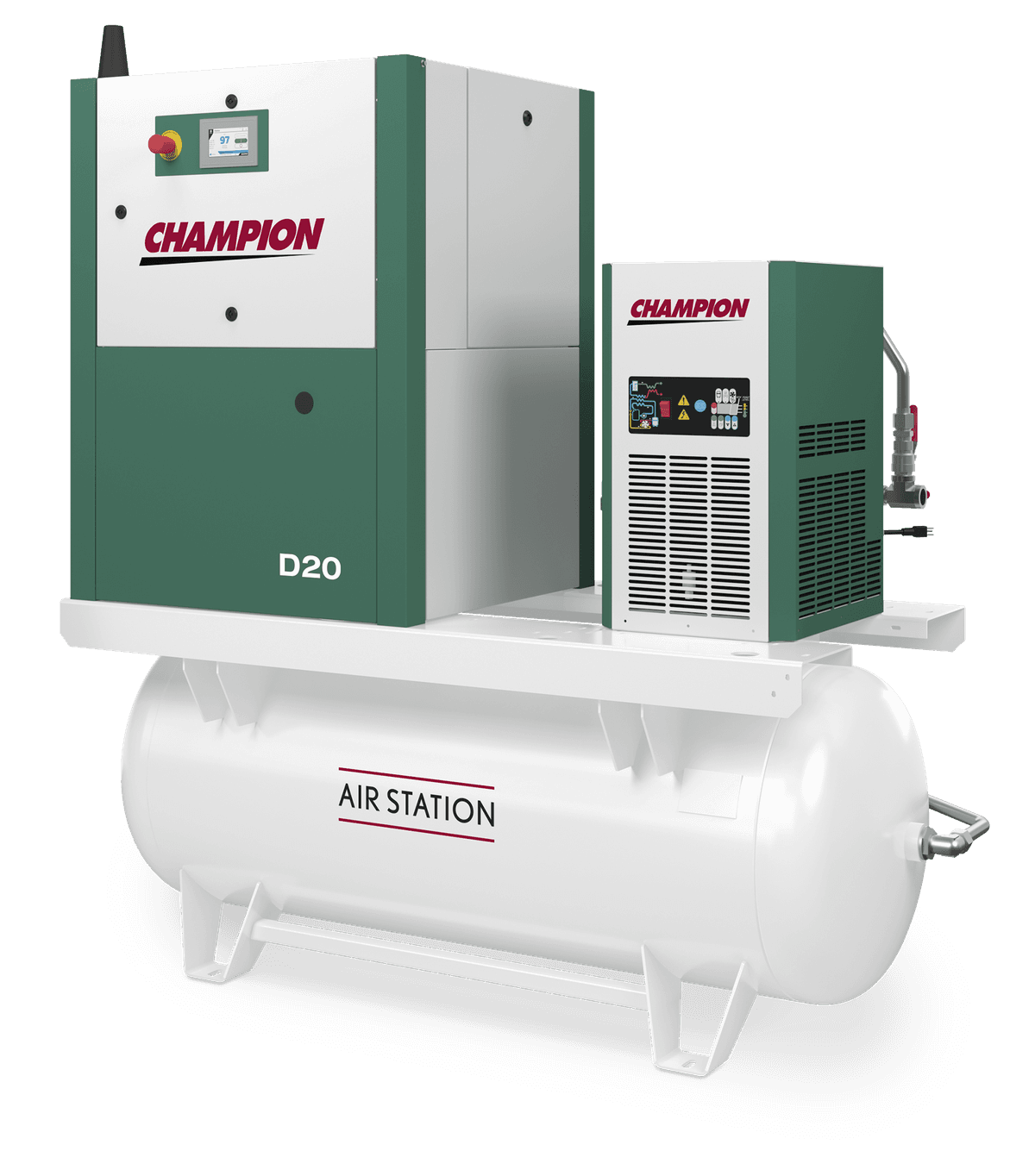

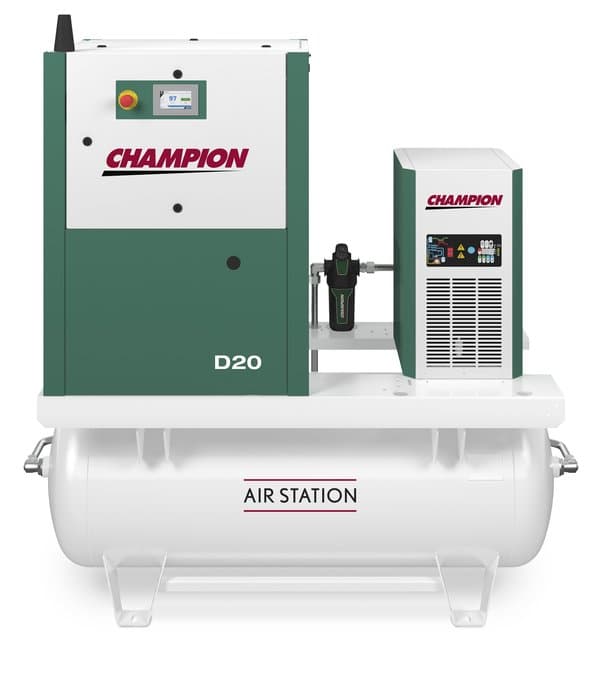

D Series 20 HP Fixed Speed Rotary Screw Compressor - Air Station

SKU: D20-30B11

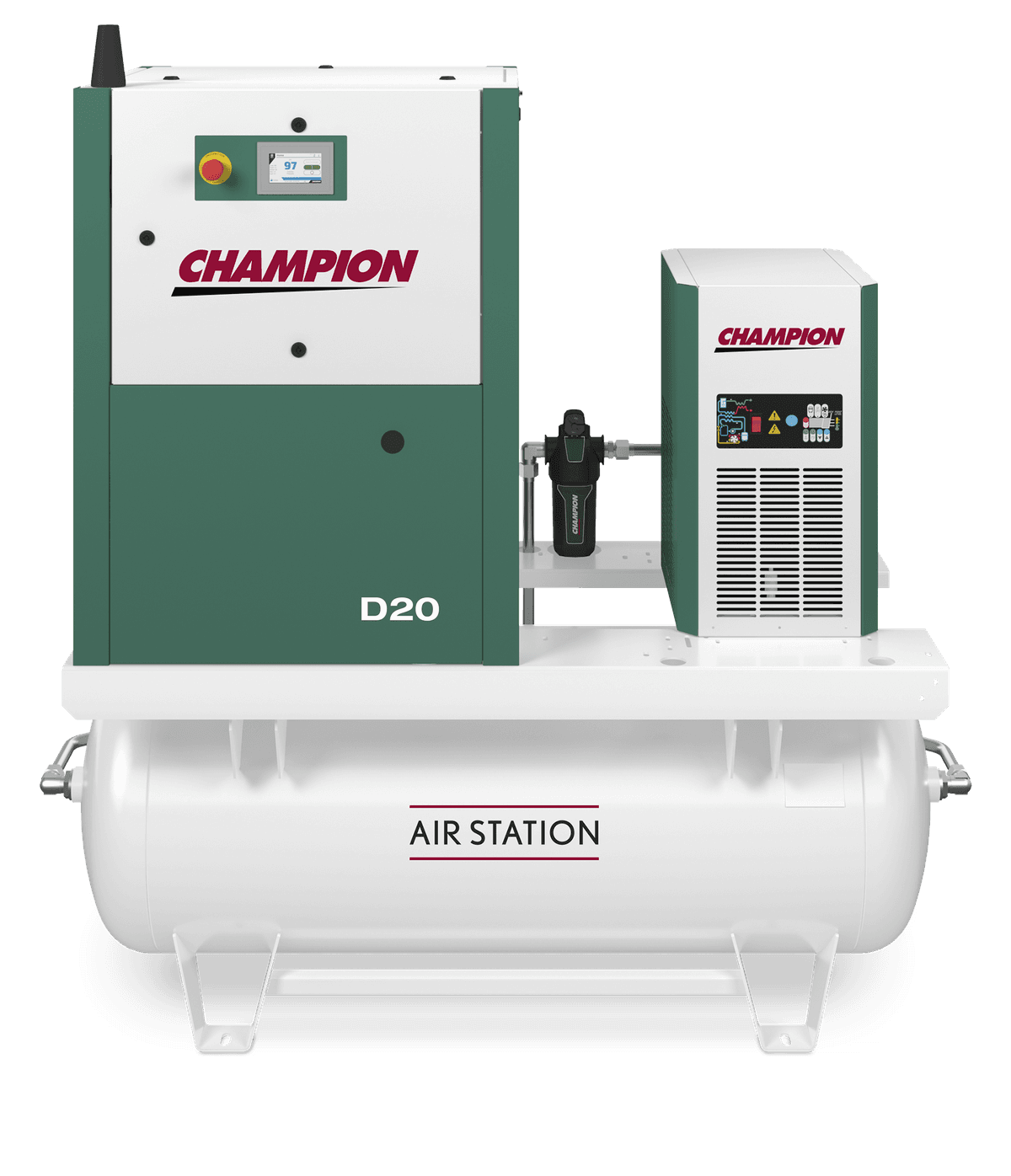

Champion D Series fixed speed rotary screw air compressor (20 HP), plug-and-play solution with dry tank receiver and refrigerated dryer
D Series 20 HP Fixed Speed Rotary Screw Compressor - Air Station thumbnail 1
D Series 20 HP Fixed Speed Rotary Screw Compressor - Air Station thumbnail 2
D Series 20 HP Fixed Speed Rotary Screw Compressor - Air Station thumbnail 3

Rotary Screw Air Compressors (20 HP)

SKU: D20-30B11

The Champion D Series offers a line of fixed speed, compact, heavy-duty rotary screw air compressors ideal for continuous use applications where constant compressed air demand is required. This is a complete plug-and-play solution for your application featuring a rotary screw compressor, dry tank air receiver, refrigerated air dryer & 1 micron pre-filter, two separate electrical connections (compressor and dryer), pressure gauge, tank drain and controller. Verify your building’s voltage before purchasing a compressor to avoid unsafe operation, tripped breakers, or motor damage, and consult a certified electrician if you’re unsure.
Product Specifications
Power (HP): 20
Rated Flow (cfm): 62.9
Max Pressure (psi): 152
Tank Size: 120
Tank Style: Horizontal
Voltage: 460
Phase: Three Phase
Compressor Dimensions (inches) (LxWxH): 74.8x35x76.3
Compressor Weight (lbs): 1701
Expected to ship within 30 business days.

$23,166.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.
  • Compact, plug-and-play compressed air solution with dryer and filter
  • Enclosed design ensures placement near the point-of-use without worrying about elevated noise levels
  • Equipped with easy to use, intelligent control solutions
  • Simplified, reduced-component, encapsulated airend design enhances reliability
  • Belt driven
