CFL Series Inline Filter - General Purpose 20 scfm Grade C Particulate

SKU: CFL20C11APYTW

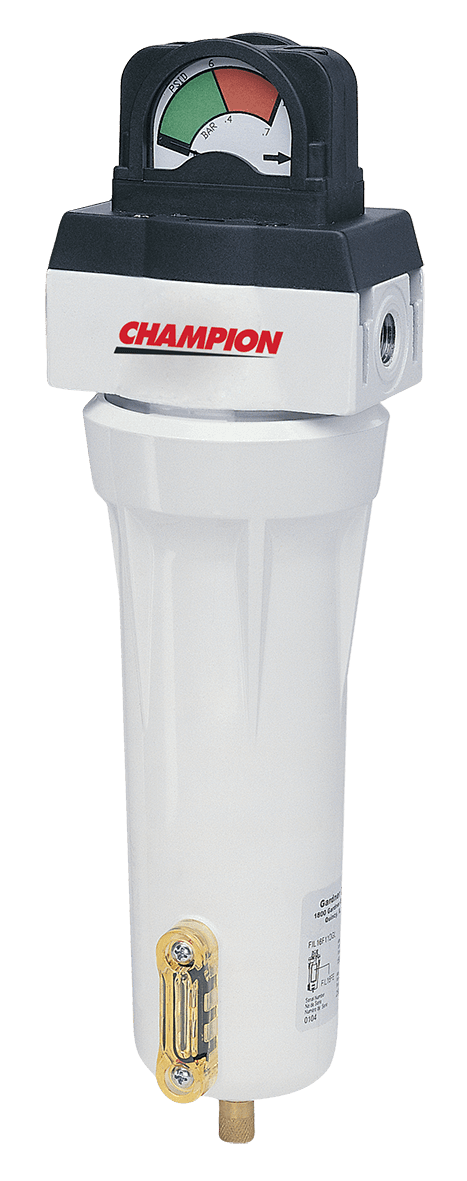

Grade C general purpose filter for Champion CFL series compressed air filters, removing solid particles, condensed water, and oil vapors

CFL Series Inline Filter - General Purpose 20 scfm Grade C Particulate thumbnail 1

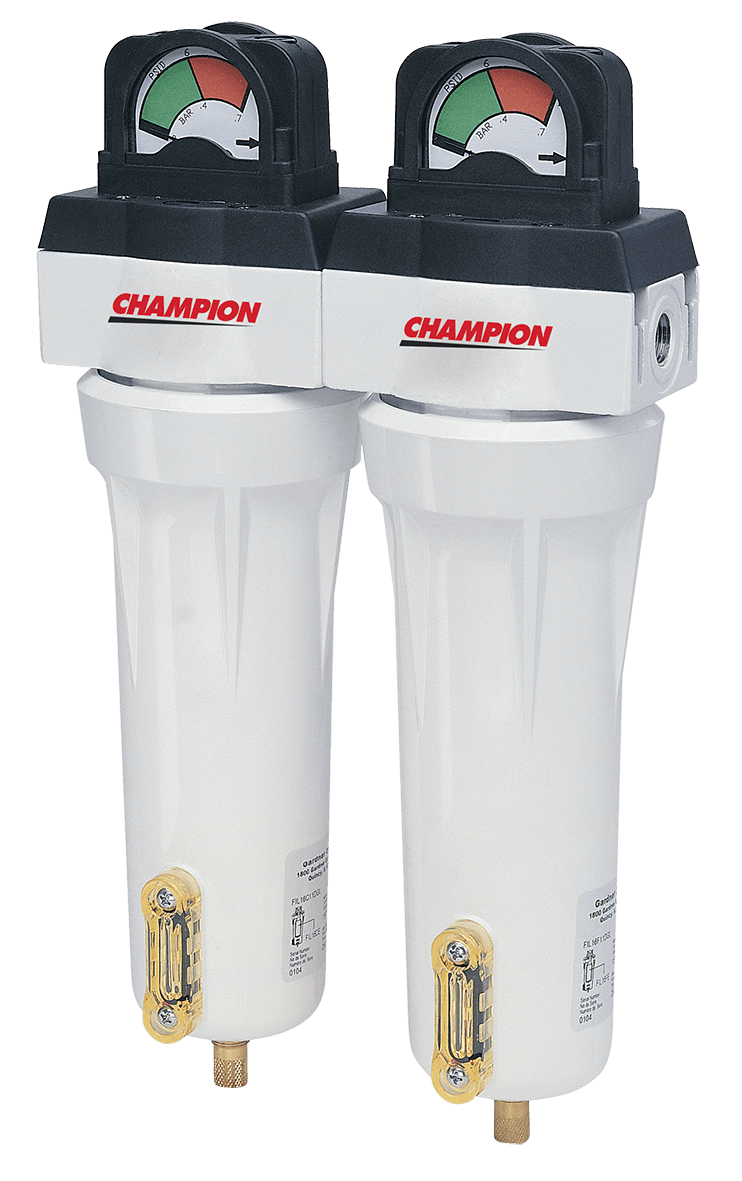

CFL Series Inline Filter - General Purpose 20 scfm Grade C Particulate thumbnail 2

Grade C - General Purpose Filter

SKU: CFL20C11APYTW

CFL Series Filters provide your compressed air system with premium quality filtration for the three typical contaminant types: solid particles, condensed water droplets, and liquid oil and oil vapors.

Product Specifications
Rated Flow (cfm): 20
Max Pressure (psi): 300
Maximum Inlet Tempearature (F): 150
Filter Dimensions (inches) (LxWxH): 4.1x4.1x8.2
Filter Weight (lbs): 4.2

Expected to ship within 7-10 business days.

$401.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Grade C
ISO 8573.1: 2010 Air Quality Class: - Solid Particles - Class 2 - Remaining Oil Content: Class 4
Maximum working pressure: 300 PSIG
Maximum inlet temperature: 150°F
